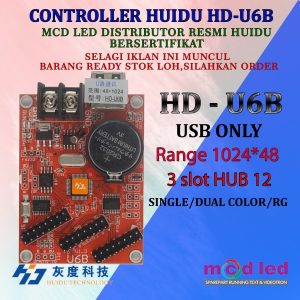

LED display controller HD-U6B (USB Port)

Features
Types of control card         : Single Color/ Dual Color
Control range                      :Single color: 1024W * 48H 1024W * 48H Dual color: 1024W * 48H
1024W * 24H
Scan modes                          : Static, 1/2、 1/3、,1/4、 1/5 、1/6、1/8、1/16 common modes etc
Communication type          : U-Disk
Power supply                       : +4.2－5.5V
Power consumption            : ≤0.5W
Work environment              : -20℃–75℃
Installation dimension         : 65（W）*48 （H）（mm）
Application Range                : Used indoor outdoor, semi-outdoor, Led Pharmacy Cross signs Showing      text, animation, time, clock etc
Languages                            : Support All languages
Application Software           : Software HD2016

Details Parameter
Flash Capacity                      : 2M Byte
Communication Port            : U-Disk to edit and updated programs
Signal Port                             : 3 OF HUB12
Program Quantity                : 1000pcs Programs. also can change program by button or remote if weld sensor (Remoter can select1-999 Programs)
Area Quantity                       : 8 areas with separate zone, and separated special effects and border
Display Showing Text, Hypertext (GIF、 Picture、 Animation Character、SWF、Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc
Program Modes                    :Playing by Sequence or by Remoter or by Button

Display effects
1.Support all languages(Software :HD2016)
2.Support 7 color effects and 64 colors Gray level (HD-U62/U63/U64)
3. Border functions of Program border, area border and Custom design border.
4.Add Countdown /Count up, Button Countdown / Count up
5.Add Text Rotation of 90°、180°、 270° for display Text function of Hollow、Stroke etc
6.Add payment collection function
7.Updated program by U-disk
8. More than 200 types showing effects
9.Support Second develop SDK
10.More high brightness, more moving speed ,more refresh

Time / Clock /Count Function
1. Support Digital Clock/ Dial Clock / Lunar Time/
2. Countdown /Count up, Button Countdown / Count up
3. The font、size、color and position can be set freely
4. Support multiple time zones

Digit Function
1. Used in Parking place、Scoring device、Calculate by piece.
2. From Minimum to Maximum, from Maximum to Minimum

Expand function
Remote function、temperature、humidity、brightness etc. (If weld sensor) .Remoter can select1-999 Programs

Brightness Control
Brightness setting by Custom、Automatic(weld sensor) 、 by time period regulation
Automatic close /open display
Support close /open display by time automatically
