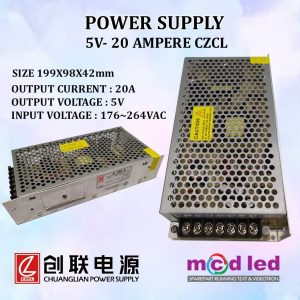

Features:

Low cost, high reliability

Built-in EMI Filter

Low output ripple&noise

Protections: Over load/ Short circuit

Case: 807  Size: 199*98*42mm

AC Input voltage range……………………………..176-264VAC

Input frequency…………………………………………47-63Hz

AC Inrush current………………………………………Cold start, 20A/ 230VAC

DC adjustment range………………………………. ±10% rated output voltage

Line regulation(full load)……………………..≤0.5%

Output over load protection………………………..110%-150% shut off, AC recycle to re-start

Rise, hold up time……………………………………..50mS, 20mS at full load (typical)

Withstand voltage……………………………………..I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 min

Working temperature………………………………..-10℃ to + 40℃@100%, +60℃@ 60% load

Storage temperature…………………………………-20℃~ +85℃,20%~ 95%RH (non-condensing)

Safety standards……………………………………….Design refer to GB4943,UL60950-1,EN60950-1

EMC standards…………………………………………Design refer to GB9254,EN55022 class A

Cooling method…………………………………………Free air cooling convection
